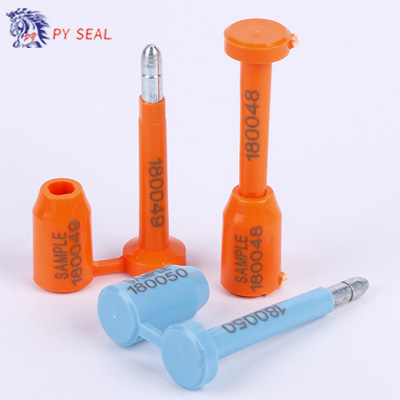

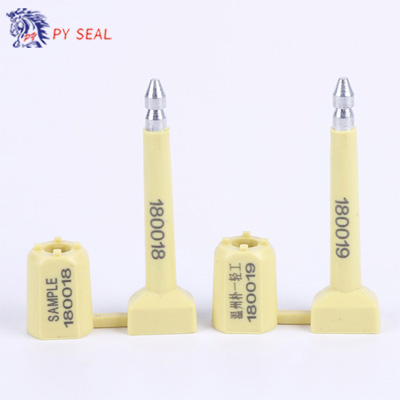

Double color injection, high security bolt seal, we can supply white&red, white&yellow,white&green, white&blue colors.

Double color injection, high security bolt seal, we can supply white&red, white&yellow,white&green, white&blue colors.

Bolt diameter is 8mm, cylinder diameter is 15mm Coated bolt cap diameter is 20mm, coated cylinder diameter is 19mm ABS coated bolt total length is 75.5mm,cylinder length is 35mm Tensile strength: >15KN

Bolt diameter is 8mm, Bolt cap diameter is19mm, bolt length is 82mm; cylinder diameter is+18mm ABS coated cylinder diameter is 22.5mm, ABS coated cylinder length is 35mm Tensile strength: >17KN

ISO17712:2013 standard high security bolt seal Bolt diameter is 8mm, Bolt cap diameter is 19mm, bolt length is 82mm; cylinder diameter is+18mm ABS coated cylinder diameter is 22.5mm, ABS coated cylinder length is 35mm Tensile strength: >17KN

1,High security bolt seal, ISO17712:2013 standarded, 2,Double color injection, high security bolt seal, we can supply white&red, white&yellow,white&green, white&blue colors.

Bolt diameter is 8mm, cylinder diameter is15mm Coated bolt cap diameter:21mm, coated cylinder diameter : 21mm ABS coated bolt length:86mm Coated cylinder length: 35mm Tensile strength: >15KN

Bolt diameter is 8mm, cylinder diameter is 18mm ABS coated bolt cap diameter is 21mm, coated cylinder diameter is 21mm ABS coated bolt total length is 85mm,ABS coated cylinder length is33.5mm Tensile strength: >16KN

Bolt diameter is7mm, cylinder diameter is 15mm ABS coated bolt cap diameter is22.5mm, coated cylinder diameter is 22mm. ABS coated bolt total length is 85mm, cylinder length is 29.5mm Tensile strength: >13KN

Bolt diameter : 8mm, bolt cap diameter : 18mm; cylinder diameter : 18mm ABS coated bolt cap diameter :22mm, coated cylinder diameter:22mm ABS coated bolt length: 81.5mm,ABS coated cylinder length: 35mm Tensile strength: >16KN

bolt diameter is 6mm, cylinder diameter is 13mm ABS coated bolt cap diameter is 18mm, ABS coated cylinderdiameter is17mm ABS coated bolt length is 70.5mm,ABS coated cylinder length is 29.5mm Tensile strength: >8KN

Bolt diameter：8mm, bolt cap diameter：18mm,cylinder diameter is 18mm ABS coated cylinder diameter : 22mm,• ABS coated cylinder length :34mm ABS coated bolt length: 81.5mm Tensile strength: >17KN
