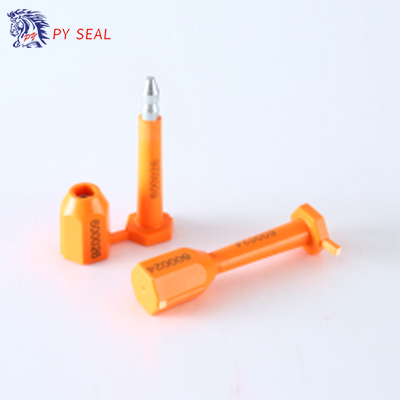

Bolt Seal PY-6002

Information

Bolt diameter is 8mm, cylinder diameter is 18mm
ABS coated bolt cap diameter is 21mm, coated cylinder diameter is 21mm
ABS coated bolt total length is 85mm,ABS coated cylinder length is33.5mm
Tensile strength: >16KN

WENZHOU PUYI LIGHT INDUSTRIAL PRODUCTS CO., LTD. is located in Wenzhou City, Zhejiang province.We have two production department--security seals
department and tobacco grinder department.
The security seals department was founded in 2013,Since its foundation, has been committed to the development and production of security seals, it
have different series of security seals, such as high security bolt seals, cable seals, metal seals, barrier seals and other container locks etc.
These seals are widely used in container transportation, logistics, express, security, electricity and other industries. Our products has been
exported to many countries and regions, such as Southeast Asia, South America, Africa and Europe and so on.
The tobacco grinder department was founded in 2017,we have developed many kinds tobacco grinder, although we were founded shortly. at presently,
we have zinc tobacco grinder,aluminium alloy tobacco grinder,
Company of "integrity, quality, innovation and development" business philosophy, warmly welcome you for good business relationship.


Website:www.pyqgzp.com  www.chinasecurityseal.com

Mail: pysale01@pyqgzp.com  pysale05@pyqgzp.com





Bolt sealPY-6002 Technical Data Sheet




Model

PY-6002 container bolt seal

Description

•Meet the new edition of ISO/PAS17712:2013 standard requirement
•Outer ABS plastic coated
•Both bolt and cylinder are made of high quality low-carbon steel

•Featured in anti-spin, to keep the locked seal cannot be rotated out
•Company name or LOGO and sequential numbers can be laser printed on seals
•Bar code is available
•Various colors are available

Technical parameters

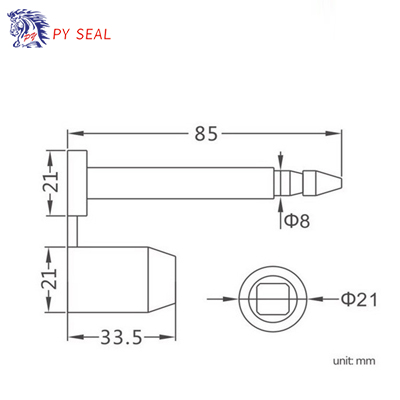

•Bolt diameter is 8mm, cylinder diameter is 18mm

•ABS coated bolt cap diameter is 21mm, coated cylinder diameter is 21mm

•ABS coated bolt total length is 85mm,ABS coated cylinder length is33.5mm

•Tensile strength: >16KN

Application

•Ocean containers shipping, all kinds of ISO containers
•Van trucks, tank trucks

Package

•Packing: 10pcs/box,250pcs/ctn
•Carton Dimension:48.5x35x15cm

Weight

G.W.:20 kg
N.W.:19 kg
