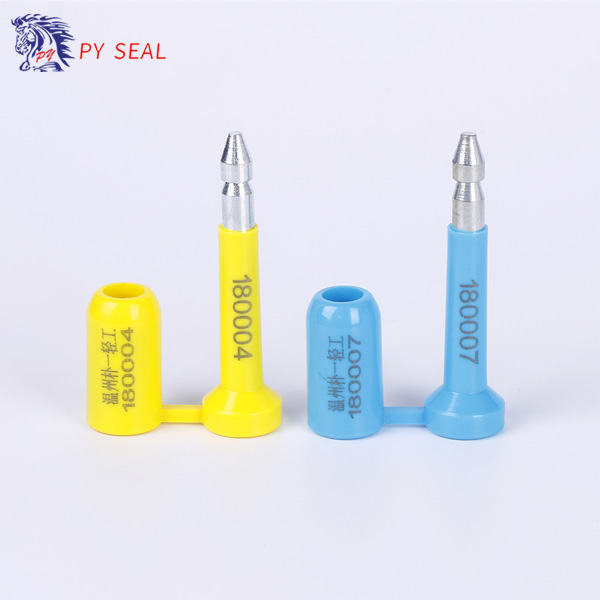

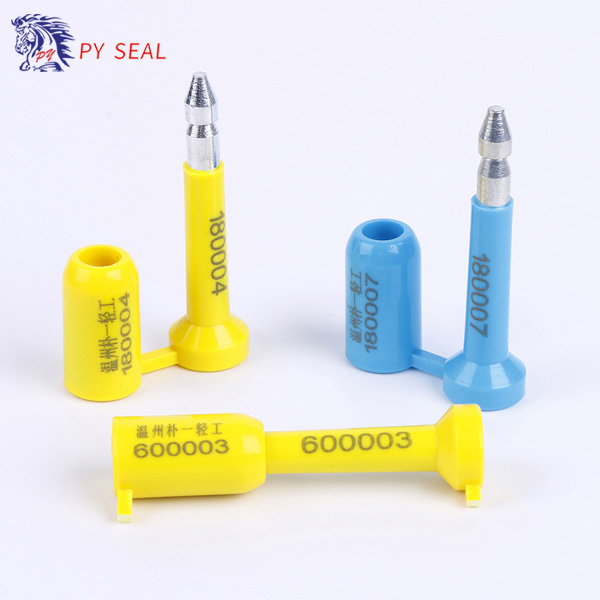

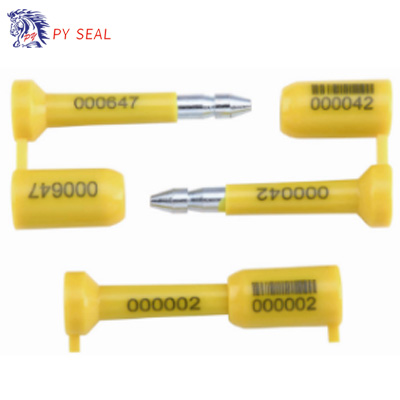

Bolt seal PY-6005

Information

Bolt diameter is 8mm, cylinder diameter is 15mm
Coated bolt cap diameter is 20mm, coated cylinder diameter is 19mm
ABS coated bolt total length is 75.5mm,cylinder length is 35mm
Tensile strength: >15KN

Inquiry

Video Download

product categories

Hot Product

Cable Seal PY 7100

Dimension of aluminum alloy(LxWxH): 21x18x6mm Cable diameter: 1.0mm Default cable length: 200mm, any other length cable is available as per requirements Tensile strength: >2KN

double color high security bolt seal PY-6013D

Double color injection, high security bolt seal, we can supply white&red, white&yellow,white&green, white&blue colors.

double color high security bolt seal PY-6013D

Double color injection, high security bolt seal, we can supply white&red, white&yellow,white&green, white&blue colors.

Bolt seal PY-6005

Bolt diameter is 8mm, cylinder diameter is 15mm Coated bolt cap diameter is 20mm, coated cylinder diameter is 19mm ABS coated bolt total length is 75.5mm,cylinder length is 35mm Tensile strength: >15KN

Description
Inquiry

WENZHOU PUYI LIGHT INDUSTRIAL PRODUCTS CO., LTD. is located in Wenzhou City, Zhejiang province.We have two production department--security seals

department and tobacco grinder department.

The security seals department was founded in 2013,Since its foundation, has been committed to the development and production of security seals, it

have different series of security seals, such as high security bolt seals, cable seals, metal seals, barrier seals and other container locks etc.

These seals are widely used in container transportation, logistics, express, security, electricity and other industries. Our products has been

exported to many countries and regions, such as Southeast Asia, South America, Africa and Europe and so on.

The tobacco grinder department was founded in 2017,we have developed many kinds tobacco grinder, although we were founded shortly. at presently,

we have zinc tobacco grinder,aluminium alloy tobacco grinder,

Company of "integrity, quality, innovation and development" business philosophy, warmly welcome you for good business relationship.

Model	PY-6005 bolt seal
Description	• Meets the latest ISO/PAS 17712 standard requirement • Outer ABS plastic coated • Both bolt and cylinder are made of high quality low-carbon steel • Company name or LOGO and sequential numbers can be laser printed on seals • Bar code is available • Various colors are available

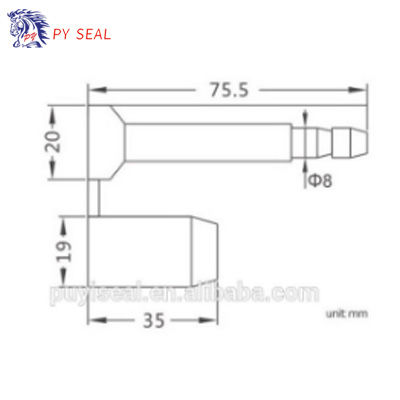

Technical parameters	•Bolt diameter is 8mm, cylinder diameter is 15mm •Coated bolt cap diameter is 20mm, coated cylinder diameter is 19mm •ABS coated bolt total length is 75.5mm,cylinder length is 35mm •Tensile strength: >15KN
Application	•Ocean containers shipping, all kinds of ISO containers •Van trucks, tank trucks
Package	•Packing: 10pcs/box,250pcs/ctn •Carton Dimension:45x30x15cm
Weight	G.W.:15kg N.W.:14kg
