new products tobacco herb grinder

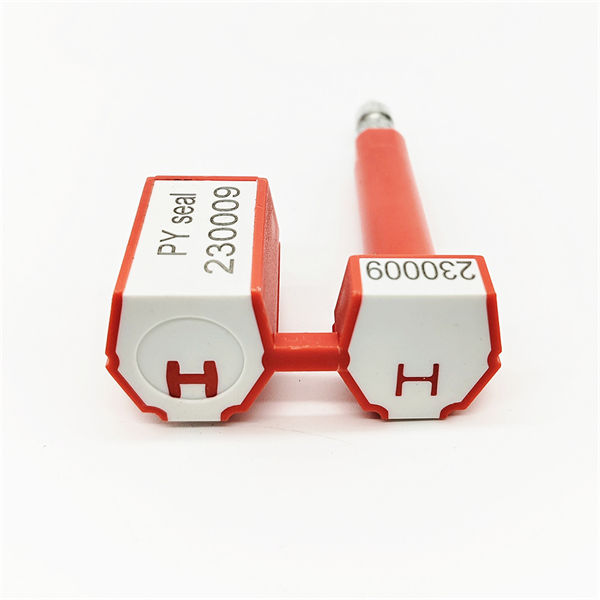

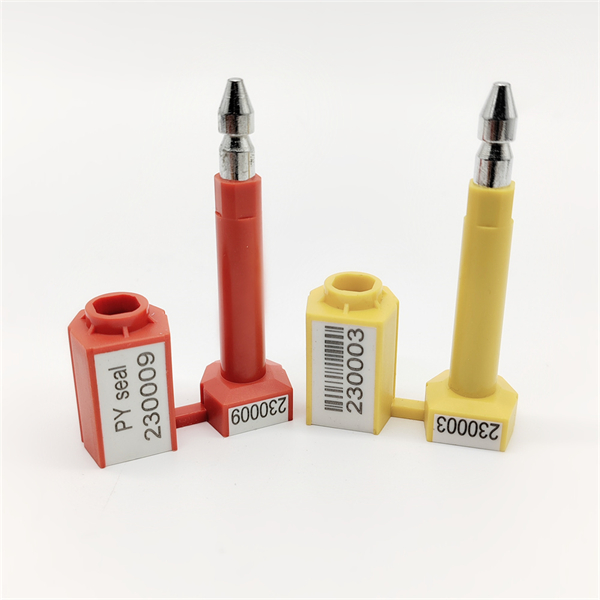

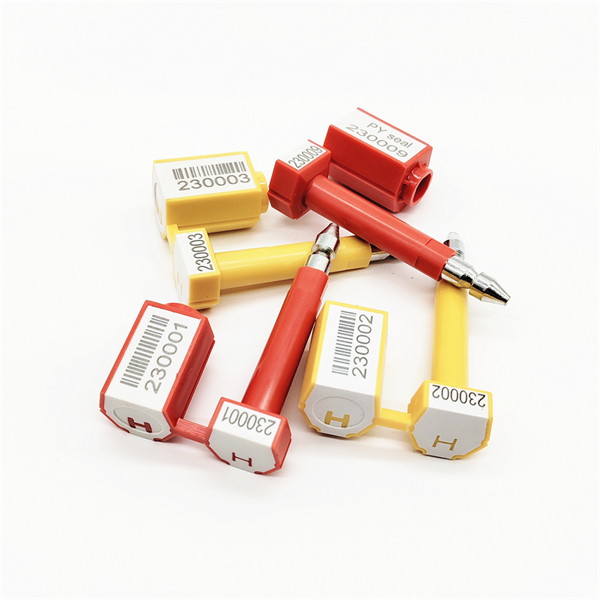

1,High security bolt seal, ISO17712:2013 standarded,
2,Double color injection, high security bolt seal, we can supply white&red, white&yellow,white&green, white&blue colors.
|
Model |
PY-6013D |
|
Description |
•Confirm to new edition of ISO/PAS17712:2013standard requirement •Featured in anti-spin, to keep the locked seal can not be rotated out •Both bolt and cylinder is made of high quality low-carbon steel •Company name or LOGO and sequential numbers can be laser printed on seals •Bar code is available •Double color injection, white&red, white&yellow,white&green, white&blue color are available |
|
Technical parameters |
•Bolt diameter : 8mm, bolt cap diameter : 18mm; cylinder diameter : +18mm
•ABS coated bolt length: 83mm,ABS coated cylinder length: 35mm |
|
Application |
•Ocean containers shipping, all kinds of ISO containers |
|
Package |
•Packing: 10pcs/box,250pcs/ctn |
|
Weight |
G.W.:19 kg |
Double color injection, high security bolt seal, we can supply white&red, white&yellow,white&green, white&blue colors.
Bolt diameter : 8mm, bolt cap diameter : 18mm; cylinder diameter : 18mm ABS coated bolt cap diameter :22mm, coated cylinder diameter:22mm ABS coated bolt length: 81.5mm,ABS coated cylinder length: 35mm Tensile strength: >16KN
Bolt diameter：8mm, bolt cap diameter：18mm,cylinder diameter is 18mm ABS coated cylinder diameter : 22mm,• ABS coated cylinder length :34mm ABS coated bolt length: 81.5mm Tensile strength: >17KN
Bolt diameter is 8mm, cylinder diameter is 18mm ABS coated bolt cap diameter is 21mm, coated cylinder diameter is 21mm ABS coated bolt total length is 85mm,ABS coated cylinder length is33.5mm Tensile strength: >16KN
