double color high security bolt seal PY-6013D

Information

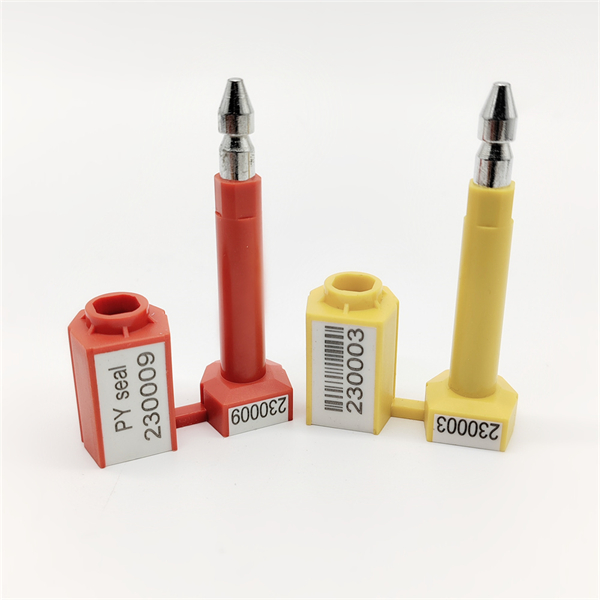

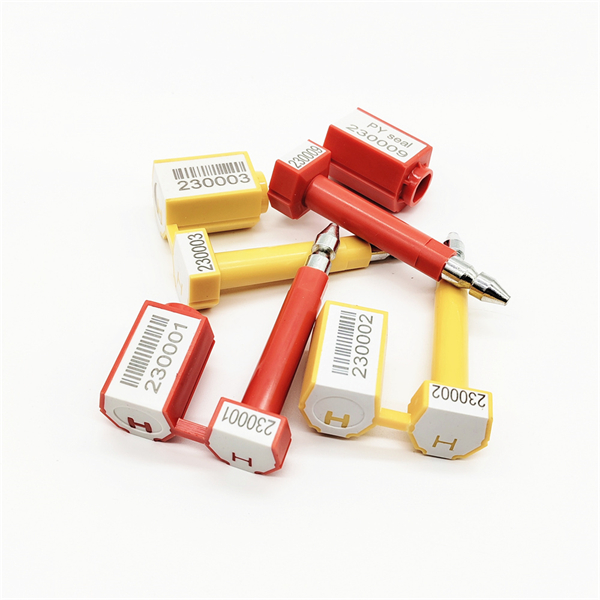

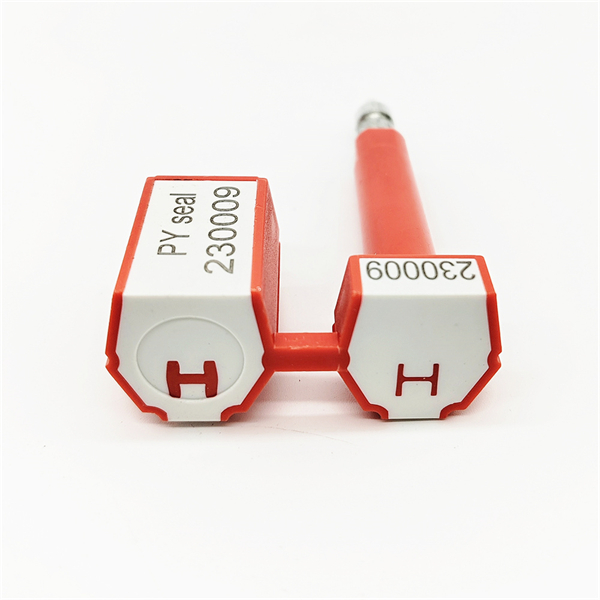

Double color injection, high security bolt seal, we can supply white&red, white&yellow,white&green, white&blue colors.

Model

PY-6013D

Description

Confirm to new edition of ISO/PAS17712:2013standard requirement

Featured in anti-spin, to keep the locked seal can not be rotated out

Both bolt and cylinder is made of high quality low-carbon steel

Company name or LOGO and sequential numbers can be laser printed on seals

Bar code is available

Double color injection, white&red, white&yellow,white&green, white&blue color are available

Technical parameters

•Bolt diameter : 8mm, bolt cap diameter : 18mm; cylinder diameter : +18mm
•ABS coated bolt cap diameter :22mm, coated cylinder diameter:22mm

•ABS coated bolt length: 83mm,ABS coated cylinder length: 35mm
•Tensile strength: >16KN

Application

•Ocean containers shipping, all kinds of ISO containers
•Van trucks, tank trucks

Package

•Packing: 10pcs/box,250pcs/ctn
•Carton Dimension: 48.5x33.5x15cm

Weight

G.W.:19 kg
N.W.:17.5 kg
