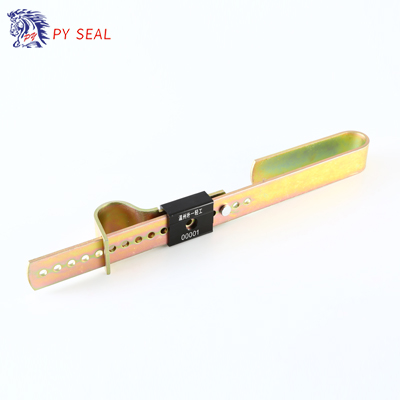

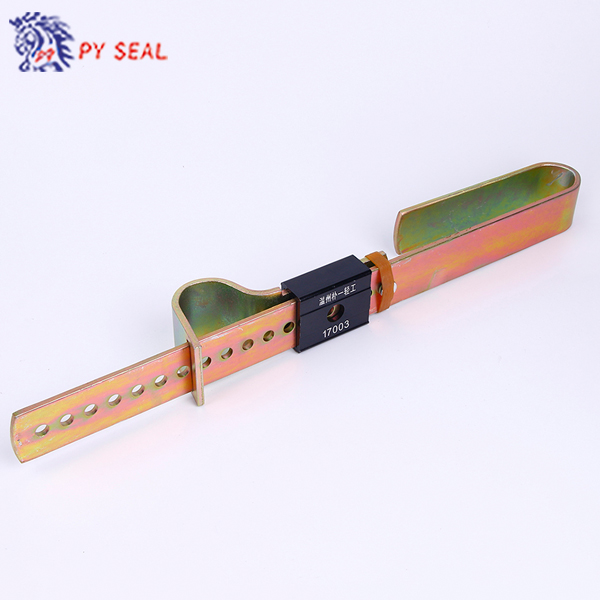

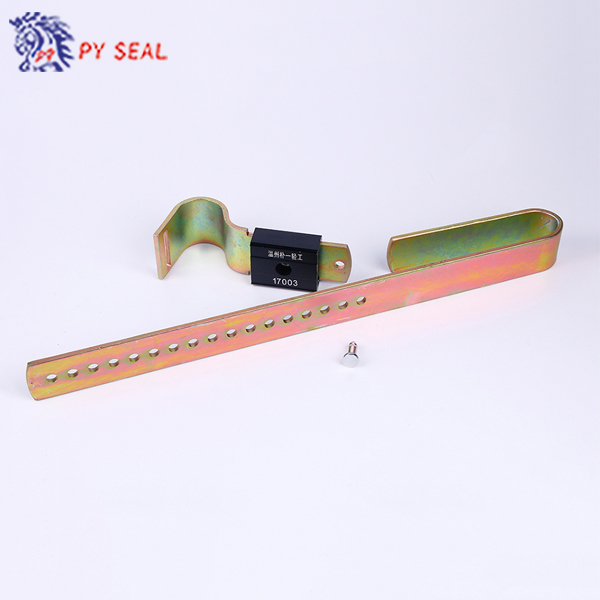

Heavy Duty Barrier Seal PY-2001

Information

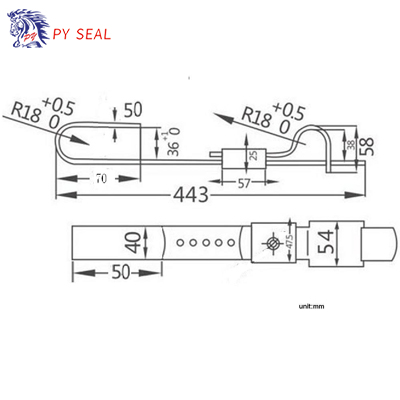

Total body length:443mm,
Width :40mm,
Thickness:5mm.
Breaking force: more than 3.5 ton

Inquiry

Video Download

product categories

Hot Product

Cable Seal PY 7100

Dimension of aluminum alloy(LxWxH): 21x18x6mm Cable diameter: 1.0mm Default cable length: 200mm, any other length cable is available as per requirements Tensile strength: >2KN

double color high security bolt seal PY-6013D

Double color injection, high security bolt seal, we can supply white&red, white&yellow,white&green, white&blue colors.

double color high security bolt seal PY-6013D

Double color injection, high security bolt seal, we can supply white&red, white&yellow,white&green, white&blue colors.

Bolt diameter is 8mm, cylinder diameter is 15mm Coated bolt cap diameter is 20mm, coated cylinder diameter is 19mm ABS coated bolt total length is 75.5mm,cylinder length is 35mm Tensile strength: >15KN

Description
Inquiry

WENZHOU PUYI LIGHT INDUSTRIAL PRODUCTS CO., LTD. is located in Wenzhou City, Zhejiang province.We have two production department--security seals

department and tobacco grinder department.

The security seals department was founded in 2013,Since its foundation, has been committed to the development and production of security seals, it

have different series of security seals, such as high security bolt seals, cable seals, metal seals, barrier seals and other container locks etc.

These seals are widely used in container transportation, logistics, express, security, electricity and other industries. Our products has been

exported to many countries and regions, such as Southeast Asia, South America, Africa and Europe and so on.

The tobacco grinder department was founded in 2017,we have developed many kinds tobacco grinder, although we were founded shortly. at presently,

we have zinc tobacco grinder,aluminium alloy tobacco grinder,

Company of "integrity, quality, innovation and development" business philosophy, warmly welcome you for good business relationship.

Website:www.pyqgzp.com www.chinasecurityseal.com

Mail: pysale01@pyqgzp.com pysale05@pyqgzp.com

Heavy duty barrier sealPY-2001 Technical Data Sheet

Model	PY-2001 barrier seal
Description	•Heavy duty barrier seal •Used for high-value goods transport, for high security protection •100% steel construction lock body •Designed by two movable buckle, More convenient to use. •Lock holes for customer choice, available for different space of the door tubes
Technical parameters	•Total body length:443mm, •Width :40mm, •Thickness:5mm. •Breaking force: more than 3.5 ton
Application	•Ocean containers shipping, all kinds of ISO containers
Package	•Packing:10units /ctn •Carton Dimension: 46X25.5X12cm
Weight	•G.W.:14.5KG •N.W.: 14KG
